[VicPiMakers Projects] What is the purple box generated by EasyEda

[James Briante]

Hello George and others,
Here are a few suggestions if you're planning to get your board
manufactured.
1:Board Size: Most manufacturers  have special discount prices for the
smaller board size. The one I've used in several designs is 3"x2 1/2",
others 5cmx5cm. If you deviate from standard board sizes be prepared to pay
much mor2.
2: if your design leaves a lot of empty space consider adding multiple
layouts on one board. The attached photo shows  a 5cmx5cm board containing
7 layout, 5 smd microcontrollers and 2 motor controllers .
3. Consider using different traces (names) for power/ground and
interconnections when placing multiple designs in one board.
4. Always a good idea to put mounting pads on your board.

I hope this helps.
Jim

On Sat, Mar 25, 2023 at 9:40 AM Joel Bisson <jbisson9 at gmail.com> wrote:

> Hi George,
>
> The purple line is the outline of your board.  You can adjust the
> dimensions with tools within easyeda.  Make it too big and you're paying
> for real estate you're not using.  Make it too small and you have a hard
> time routing signals.
>
> Hope that helps,
> Joel
>
> On Sat, Mar 25, 2023 at 8:13 AM George Bowden <gtbowdeng at gmail.com> wrote:
>
>> Hi Stan and others

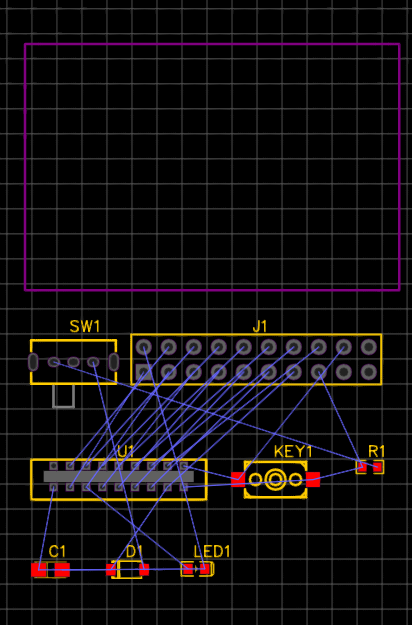

>> What is the purple outline of the rectangle  for at the top, when I
