[VicPiMakers Projects] What is the purple box generated by EasyEda

[Joel Bisson]

Hi George,

The purple line is the outline of your board.  You can adjust the
dimensions with tools within easyeda.  Make it too big and you're paying
for real estate you're not using.  Make it too small and you have a hard
time routing signals.

Hope that helps,
Joel

On Sat, Mar 25, 2023 at 8:13 AM George Bowden <gtbowdeng at gmail.com> wrote:

> Hi Stan and others

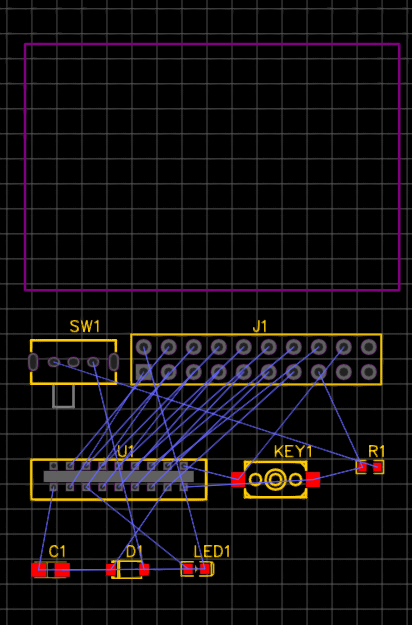

> What is the purple outline of the rectangle  for at the top, when I
