Hi!

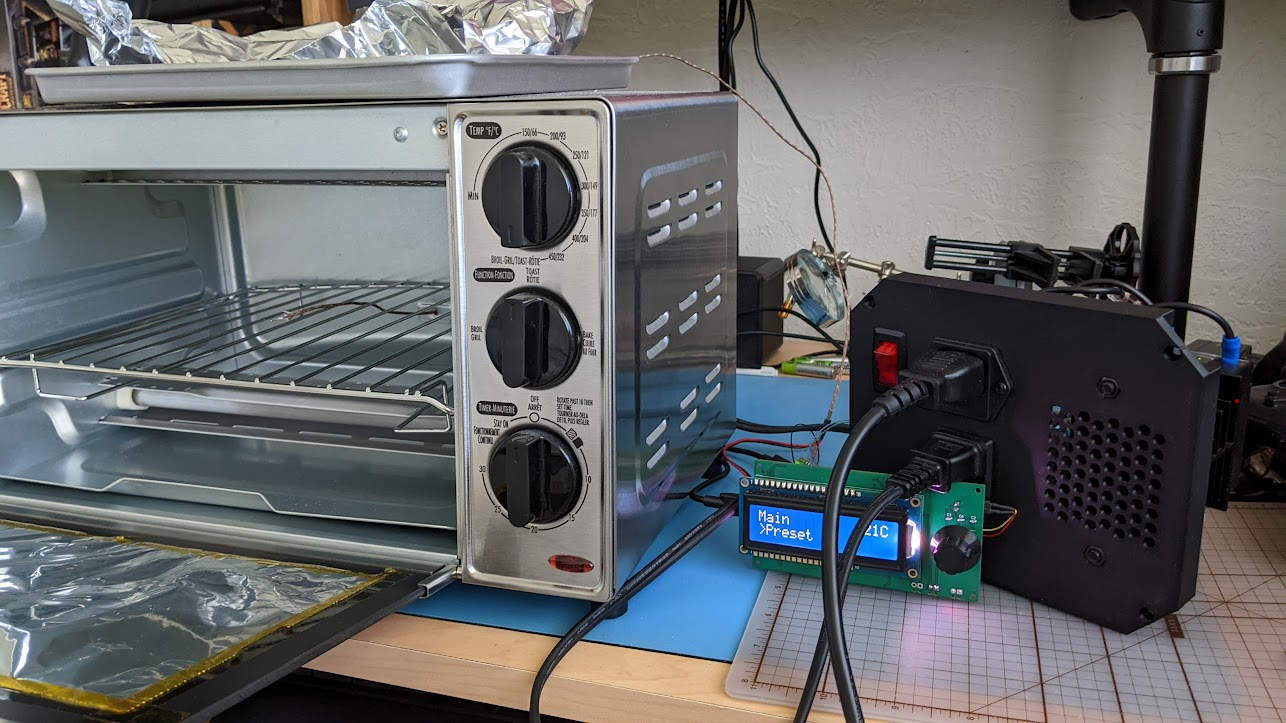

I'm actually currently in the middle of a toaster oven reflow build
using Pi Pico. It's similar to the hotplate build but instead I'm
using the SSR to switch the live of the AC receptacle which the
toaster oven is plugged into. I'm still in the process of CAD-ing the
rest of the case of the switch box and tuning the heating but I've
gotten close to hitting the standard reflow curves so far in testing.
Happy to swap ideas if anyone is interested.

Sound

On Sat, May 10, 2025 at 11:46 AM Dave Hylands <dhylands at gmail.com> wrote:
>
> I think it was George and I were talking about surface mount reflow while the rest of the group was dealing with technical issues.
>
> This looks like a fairly simple way to build your own: https://www.youtube.com/watch?v=C7blZigaaaA
>
> --
> Dave Hylands
> Peachland, BC, Canada
> http://www.davehylands.com
> --
> Projects mailing list
> Projects at vicpimakers.ca
> http://vicpimakers.ca/mailman/listinfo/projects_vicpimakers.ca
